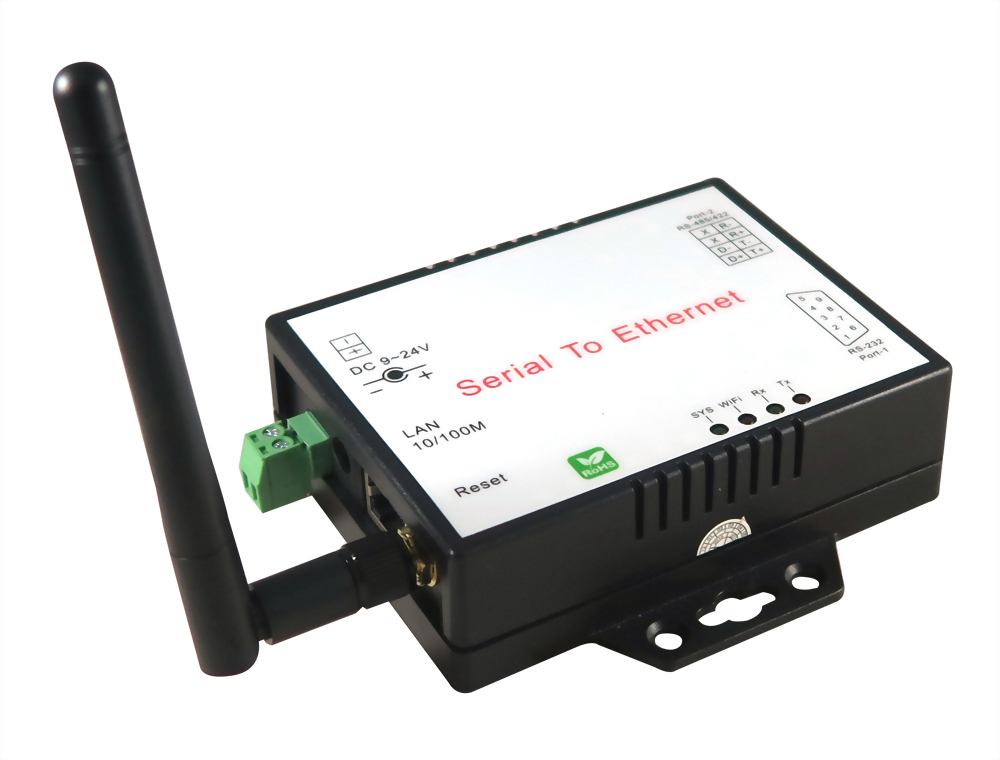

• Modbus Gateway (Ethernet+WiFi) WPC-832-2-Modbus

WPC-832-2-Modbus

型號 : WPC-832-2-Modbus

• TCP to RTU support 8 simultaneous TCP Master, 32 simultaneous requests per Master.
• RTU to TCP support 8 TCP Slaves on each port.
• Web Browser configuration
• Easy installation Windows utility
• On line F/W upgrade
• Software support :
  TCP to RTU Slaves, RTU to TCP Slaves,
  TCP to ASCII Slaves, ASCII to TCP Slaves

System

  • CPU : MT7688AN MIPS CPU , 580 MHz
  • RAM : 128M Bytes DDR2 RAM
  • ROM : 32M Bytes Flash ROM
  • OS :  Open Wrt Linux OS

Ethernet *1

  • Port Type : RJ-45 Connector
  • Speed : 10 /100 M bps  ( Auto Detecting )
  • Protocol : ARP , IP , ICMP , UDP , TCP , HTTP , DHCP
  • Protocol DNS , NTP
  • Mode : TCP Server / TCP Client / UDP
  • Setup : HTTP Browser Setup (IE & Netscape) ,  Console
  • Security : Setup Password
  • Protection : Built-in 1.5KV Magnetic Isolation

WiFi  *1

  • Standard : 802.11b/g/n
  • Data Rate :11/54/72.2 Mbps @ 20Mhz Band Width
  • Modulation : DSSS; OFDM
  • Frequency : 2.4GHz
  • Tx Power 11b : Max. 22dBm
  • Tx Power 11g/n : Max. 19dBm
  • Rx Sensitivity : -76dBm@54Mbps; -89.5dBm@11Mbps
  • Tx Rate : Max. 54Mbps with auto fallback
  • Tx Distance : Up to 100 Meters
  • Security : WEP 64-bit / 128-bit data encryption, WPA / WPA2
  • Antenna : 2 dBi ; RP-SMA connector
  • Network Mode: Infrastructure; Soft AP (for Setup)
  • Mode : TCP Server/ TCP Client/ UDP/ Virtual Com/ Pairing
  • Setup : HTTP Browser Setup (IE, Chrome, Firefox)
  • Security : Login Password

Serial Ports *2

  • Port : RS-232 *1 (RX/TX only )
  • Port : RS-422 / 485  ( Surge Protect )
  • Speed300 bps ~ 921.6K bps
  • ParityNone , Odd , Even
  • Data Bit5 , 6 , 7 , 8
  • Stop Bit : 1 , 2
  • RS-232 Pins : Rx , Tx , GND
  • RS-422 : Rx+ , Rx- , Tx+ , Tx- ( Surge Protect )
  • RS-485 : Data+ , Data- ( Surge Protect )
  • 15KV ESD for all signals

Other Features(**for OpenWrt programming only)

  • Led Lamp : SYS, WiFi, RX, TX, LAN
  • Watch Dog Function

Power

  • DC 9~32V, 200mA@12V, support DC Jack & Terminal Input

Mechanical and Environment

  • Operating Temperature : -20℃〜70℃
  • Storage Temperature: -25℃〜80℃
  • Dimensions : 110 * 90 * 26 mm ( W * D * H )
  • Weight : 110 ± 5gm

Warranty

  • Warranty period : 1 year.

Software

  • Software  : TCP TO RTU Slave, RTU Master TO TCP Slave , TCP TO ASCII Slave, ASCII Master TO TCP Slave
  • Utility  :  Built-in Web server Setup, Easy Operation
